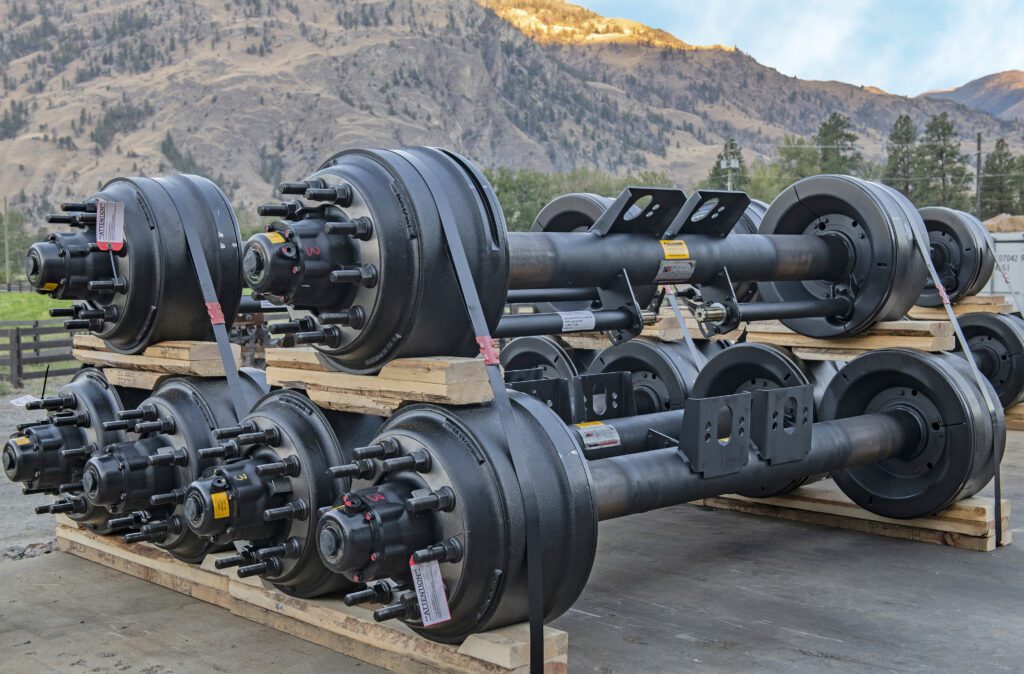

KGI Standard Trailer Axles

Standard Trailer Axles

Integral One Piece Beam
Common track lengths use the integral one piece beam. This eliminates friction welded joints which prevents the possibility of spindle-tube joint failure due to a bad weld.

Machining of the spindle on the one piece beam allows for better concentricity between spindles and beam, promoting better spindle-beam brake alignment. This ensures a more consistent centering of the brake drum relative to friction welded beams. The end result is increased brake shoe life as the shoe wears more evenly. The improved centering also helps insure brake shoes make even contact with the drum, helping minimize pushrod stroke by minimizing undesirable flex in the brake system.

Key spindle diameters are cylindrically ground with continuous feedback for accurate sizing of the bearing and seal diameters.

The total indicated runout (T.I.R.) between the inner and outer bearings is virtually zero, and the opposing spindles on a one piece beam are more concentrically aligned to each other, relative to friction welded beams.

For more information, see the spec sheet or contact us.

Axles We Manufacture

KGI Self-Steer Axles

Self-Steer Axles

We have been manufacturing leading king pin Self-Steer axles for over 35 years. Our axles can be made to fit most suspensions and can accommodate various brake sizes. They are manufactured to provide the highest impact values in the industry, and are available in virtually any track width required.

KGI Force-Steer Axles

Force-Steer Axles

Our in-line king pin Force-Steer axles are the most versatile in the industry. They will fit most suspensions, will accommodate various brake sizes, and are available in single and dual tire applications, among other customization options. We also offer complete steering system solutions for manual or fully automatic control.

KGI Off-Highway Axles

Off-Highway Axles

We build a diverse lineup of Off-Highway axles over a broad range of capacities up to 100,000 lbs. Manufactured from special quenched and tempered alloy steel for highest impact properties in extreme temperatures. They are commonly used on off-road trailers, tankers, and mobile equipment.

Standard Trailer Axles

Standard Trailer Axles

Our Standard Trailer Axles are incredibly versatile. With various track lengths available, paired with disc brakes from all leading manufacturers (Haldex, Wabco, Bendix), and have options for Trunnion and specialty applications. All trailer axles are assembled in our plant, and are built to the standards and quality.

Contact us for more information about our products or for a quote on a custom product
